How to Use ControlUp to Solve the Top 10 Citrix Errors

When it comes to managing a Citrix environment, there’s a lot to take into account. You’ve got to make sure your Citrix Virtual Apps & Desktops (XenApp & XenDesktop if you’ve been around that long) environment is properly licensed, that your NetScalers are doing their thing, and that, no matter what, your users are able to stay productive. But there are some errors that can get in the way of that. Using anonymized data and conversations with our thousands of customers, we ranked the Top 10 Citrix errors they experience. We’ll highlight the errors themselves and potential causes, and also show you ways that ControlUp can deal with them.

As a primer, check out the full list of Citrix Broker events and error codes

Source: Citrix Broker Service—Event ID: 1151


License Server Down Error: “The Citrix Broker Service cannot contact the license server ‘%1’.

Please ensure that the license server is functioning correctly and that the details identifying the license server are correct in the XenDesktop configuration.”

Seeing any error isn’t ever something you want, but this one can be relatively harmless. Fortunately, Citrix has accounted for a license server or service disruption by providing a grace period of 30 days to allow Delivery Controllers to continue brokering new user sessions successfully even without a functioning licensing service. That said, it’s still a good idea to ensure a quick resolution, so you can bring the license server back to a functioning state.

Of course, the first requirement here is to actually get alerted when the license server is unavailable. Like we said, your Citrix Virtual Apps & Desktops end users likely won’t experience any issues when it comes to this error, so they won’t be calling your help desk about it (thank God for small favors). Still, you obviously don’t want to be sifting through event logs all day either (nobody’s got time for that).

Here’s how ControlUp can help here.


XenDesktop configuration
Figure 1. An example of Scoutbees Scouts configured to test some Citrix License Server services


For early alerting, you can use ControlUp Scoutbees to quickly and simply test the availability of your Citrix License Server and all of its important licensing services; this is simple and takes just a few minutes to set up.


Citrix License Server
Figure 2. Example of an alert policy to alert on any test failure or when the cert expires soon


You can set up alerts for when the server or services are unavailable or are responding more slowly than usual. If you want, you can get even more granular, as Scoutbees proactive monitoring provides lots of different options in the Alert Policy feature. For example, you could do an HTTPS test on the License Admin Console and get alerted if / when the page fails to load and also when the certificate is about to expire.


Citrix ControlUp
Figure 3. Example of Citrix License Server metrics in Real-Time DX


You can quickly check the health of the License Server using ControlUp Real-Time DX. Here you can see if you’re running low on available licenses. To view these metrics, just install the ControlUp agent on your Citrix License Server(s).


ControlUp Real-Time DX
Figure 4. Powering On a VM with Action with ControlUp Real-Time DX


Of course, if your Citrix License Server is truly down and you want to get it up and running fast, you can navigate to the server in your Real-Time DX console and power it up either through Power Management actions [when right clicking on the server] or, if you are connected in Real-Time DX to your hypervisor (ControlUp supports Citrix Hypervisor [XenServer if you’re old-school], VMware vSphere, Nutanix Acropolis, and Microsoft Hyper-V), you can use ControlUp’s excellent Power On VM script action.


Citrix Hypervisor XenServer
Figure 5. Starting Citrix License Services from Controllers


If your License Server looks like it’s powered on when you’re connected to it, you can try to remote to the virtual machine from the ControlUp Real-Time DX console to ensure it is functioning and / or choose to manage services, ensuring the licensing-related services are all started. If not, start them.


Source: Citrix Broker Service—Event ID: 2013


An unexpected exception occurred while the Citrix Broker Service processed an HTTP request.

This error can be caused by different underlying issues and users will get a generic “cannot start” app error.


Citrix Broker Service
Figure 6. Database status metrics in ControlUp Real-Time DX


The potential underlying causes of this error include database connectivity problems, resulting in a database failover event, but due to a misconfiguration, a successful failover is not possible. In some cases, a reboot of Delivery Controllers can help restore the services. You can perform these reboots from the Real-Time Console using actions. If this doesn’t help, it’s best to work with Citrix support and coordinate a fix. This could include updating a database configuration change.

If you’ve been a Citrix Admin for more than a quick cup of coffee, you’ll be familiar with gathering CDF traces to share with Citrix support. When you have an issue that’s hard to reproduce and is intermittent, it makes getting an effective CDF trace tricky UNLESS you use ControlUp Automate. This is a great blog on how ControlUp Automate helps maximize resources, optimize end user’s experience and supplements your troubleshooting efforts.


Source: Citrix Broker Service—Event ID: 1065


The Citrix Broker Service failed to determine the base settings needed for virtual desktop agent of machine ‘%1’

Citrix says you can attempt a restart of the VDA as your first mitigation step. If that doesn’t resolve the issue or the issue starts coming up more frequently, you should gather CDF traces and share with Citrix support. They might advise you to change these registry settings on your Delivery Controllers:

HKEY_LOCAL_MACHINE\Software\Citrix\DesktopServer\MaxTimeBeforeStuckOnBootFaultSecs DWORD Value: 30000
HKEY_LOCAL_MACHINE\Software\Citrix\DesktopServer\MaxTimeBeforeUnregisteredFaultSecs DWORD Value: 30000

MaxTimeBeforeStuckOnBootFaultSecs:  How long to wait (in seconds) after a machine started but did not receive any notification from the HCL that the VM tools were running. After this timeout, a machine’s fault state would be set to StuckOnBoot.
MaxTimeBeforeUnregisteredFaultSecs: How long to wait (in seconds) after a machine starts but remains unregistered with the Broker (with or without attempting to register). After this timeout, a machine’s fault state would be set to Unregistered.


Citrix Delivery Controllers
Figure 7. Setting Registry Values in Controllers


You can quickly and easily set the registry values for all of your Delivery Controllers at once using the Controllers feature in Real-Time DX. Just go to Controllers, click on Registry, and add your Delivery Controllers. Then, simply create the Registry Values suggested.

If extending the timeout period through the registry helps alleviate the errors, it’s still a good idea to work with Citrix support and allow them to look at some CDF traces to find out what’s causing the slowness in your environment. Again, you can use ControlUp Automate to run these CDF traces automatically for you.


ControlUp Scoutbees Response Trends
Figure 8. Scoutbees Response Trends


Another way to address this is to set up a Scoutbees Scout to test network performance to your Delivery Controllers using a Custom Hive on the same IP subnet as your VDAs. This is a great solution if the problem is intermittent. it’ll allow you to spot trends in the performance over time and pinpoint degradation over hours, days, weeks, and months. This helps zero in on the cause of the slowness.


Source: Citrix Telemetry Service—Event ID: 1007


We cannot start the Citrix service that enables you to enroll in Call Home.

This one is relatively simple. If you are on CVAD v7.15 or earlier, you may require to update to a newer cumulative update to resolve the problem. As 7.15 is not the current LTSR version, I will assume you are not experiencing the error on that version. If you are encountering this error on a newer version of Citrix Virtual Apps and Desktops, your service account for the Citrix Telemetry Service probably doesn’t have their Logon-as-a-Service permissions.


Citrix Virtual Apps and Desktops
Figure 9. Log on as a service Properties


This can be found in Group Policy under Computer Configuration > Windows Settings > Security Settings > Local Policies > User Rights Assignment.


Figure 10. Services in Controllers


The  Controllers feature (our friend in ControlUp Real-Time DX) can be used to quickly view the Citrix Telemetry Service on the affected VDA or Controller to see the account being used to run the service. Then you can ensure the account has the User Rights Assignment for Logon-as-a-Service.


Citrix Telemetry Service
Figure 11. Refresh Machine Policies Action in Real-Time DX


When set, you can force a group policy update from Real-Time DX (as seen above).


Group Policy Citrix
Figure 12. Restarting a Service in Controllers


Finally, perform a service restart from the Controllers feature.


Source: Citrix Desktop Service—Event ID: 1001


The Citrix Desktop Service failed to obtain a list of delivery controllers with which to register. Please ensure that the Active Directory configuration for the farm is correct, that this machine is in the appropriate Active Directory domain and that one or more delivery controllers have been fully initialized. Refer to Citrix Knowledge Base article CTX117248 for further information.

According to Citrix, this error occurs when the VDA can’t access a Domain Controller on port 3268 (Microsoft Global Catalog). The VDA must communicate with the DC during the registration process to validate its list of configured Controllers. It could be worth checking the list of DDCs in the registry on your VDA (HKLM\Software\Citrix\VirtualDesktopAgent\ListOfDDCs). If you need to set the ListOfDDCs by policy, check out this guide.


Domain Controllers Citrix
Figure 13. Scoutbees Scout Parameters


ControlUp Scoutbees can perform tests of any Domain Controller on the corporate network over port 3286 and alert if / when the service is unavailable. It can also detect performance degradation that could indicate when the service is about to become unavailable, enabling you to be proactive and address the problem before it causes any service disruption. For a team who does not necessarily have visibility into the maintenance of Domain Controllers, but manages and supports Citrix, it would be a good idea to have a clear record of the availability trends on hand.


ControlUp Script Action

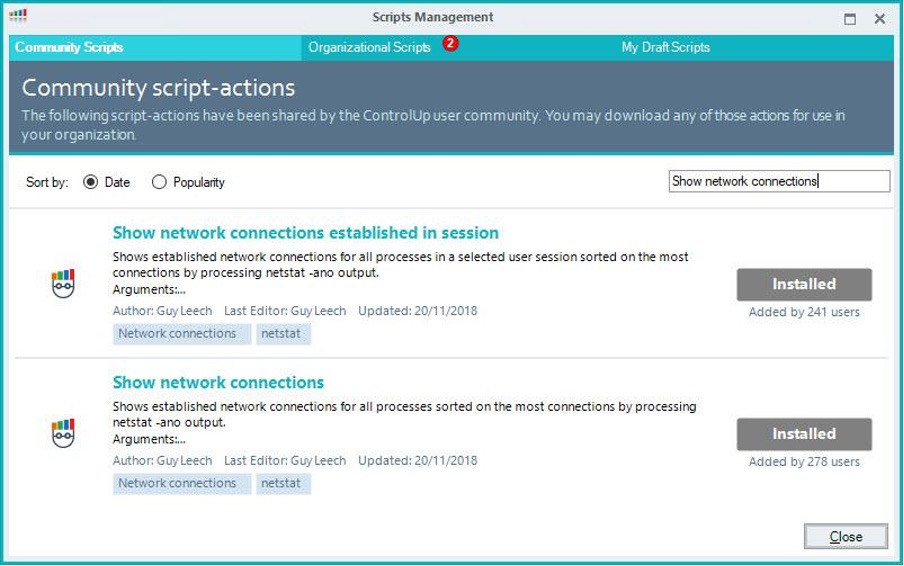

Figure 14. Show network connection script action


For assistance with troubleshooting point-in-time, you can use the Show Network Connections script action to list the current connections from a selected Citrix VDA to see active network connections from the VDA. If you see a connection to a valid Domain Controller over port 3286, it is not a problem right now. If there is no active connection, that is a clear indication of a problem. You can also optionally create your own SBA to run a simple BAT / CMD of netstat -na for a raw unsorted list of network connections per the CTX133769 but we think Guy’s script is a much cooler experience. 😎


Source: Citrix Broker Service—Event ID: 1201


The connection between the Citrix Broker Service and the database has been lost.

This one is a little bit different because it’s a warning rather than an error, BUT it could well be a legitimate cause for concern. In Citrix XenApp and XenDesktop version v7.12, the Local Host Cache feature was reintroduced. It’s a good idea to use this feature because, when you experience a connection break between the Delivery Controllers and your Database, it makes sure user sessions won’t be disrupted. It uses a cached database on the primary Delivery Controller and continues on its merry way until it’s able to restore a connection (which you can usually see with Event 1200).

There’s a particular instance where this warning is particularly troublesome. When the database connection starts flapping—meaning the connection drops, but then establishes again then drops and establishes, drops, establishes and on and on, over and over again in a maddening, virtualized loop. The problem with this is that the connection may never be down long enough for Local Host Cache mode to take over, which can interfere with users attempting to launch applications and desktops while the flapping is occurring.


XenApp XenDesktop
Figure 15. Seeing Database metrics in Real-Time DX


Once again, ControlUp Real-Time DX to the rescue! No need to go digging through event logs; you can see the database connectivity status for your Delivery Controllers like in the screenshot above.


Citrix Database
Figure 16. Scoutbees Scout Parameters


Using Scoutbees to test your Citrix database over the port you are using for your Database connection can be useful for pinpointing when the DB becomes unavailable (if it actually does).

A real-world example of this was a customer who had this flapping occur when the database VM was being backed up by a third-party product. The Citrix team didn’t have visibility into this tool and its schedule, but were able to pinpoint the occurrences to within the same few hours on the days it happened, which led to discovery of the root cause.

This is also an instance where our earlier example of running a CDF trace could come in handy. You could also add a script to change the registry value on your primary Delivery Controller to force the use of the Local Host Cache after a quick validation that the cache is in a healthy state.


Source: Citrix Store Services (StoreFront)—Event ID: 4003


All the Citrix XML Services configured for farm SMSTORE failed to respond to this XML Service transaction.

This error can be caused by several things: firewall blocking traffic, a timeout being reached, or the port the XML service is using becomes unavailable. This problem isn’t unique to Citrix or this individual service; it can happen to any process. It’s possible you patched the Storefront Servers, an update assigned the port to another process, and on reboot, took over the port.

Our friend the Show network connection script action can help here. It can aid you in identifying what took the XML port over and allow you to modify or disable that service to return Storefront to a working state.


Citrix Storefront
Figure 17. Show network connection Script Actions


Source Citrix Remote Broker Provider—Event ID: 514


A Connectivity Check has Failed

This one can be simple! The error indicates a possible issue with network connectivity on your Citrix Cloud Connector for Citrix Cloud.


Citrix Cloud
Figure 18. Cloud Connectors metrics in ControlUp Solve


If you added Citrix Cloud as a monitored resource in ControlUp Real-Time DX, you can quickly check the health and status of your Citrix Cloud Connectors, including whether or not the Cloud Connector is on the latest version or not. Importantly, you can check the network metrics to see if there is an indication of a network issue.


Citrix Cloud Connectors
Figure 19. Services in Controllers


You can ensure the correct Citrix services are all running and, if not, quickly start them with Controllers.

General: Desktop Not Available

Cannot Start Desktop

If you have a limited number of available or 1:1 persistent desktops for your employees or perhaps and one (or many) of those desktops become unregistered, you could find yourself in the unfortunate position of your Service Desk calling you early in the morning to say people can’t work because their desktops won’t launch. There’s not enough coffee in the world to get you through that.


Citrix Desktop Service
Figure 20. Restart Citrix Desktop Service Script Action


We have a script you can use to restart the Citrix Desktop Service remotely, coupling this with a trigger based on the VDA being on, out of maintenance mode, and unregistered for several minutes. This will force the service to restart, which will force the VDA to re-register.


Citrix Virtual Desktop

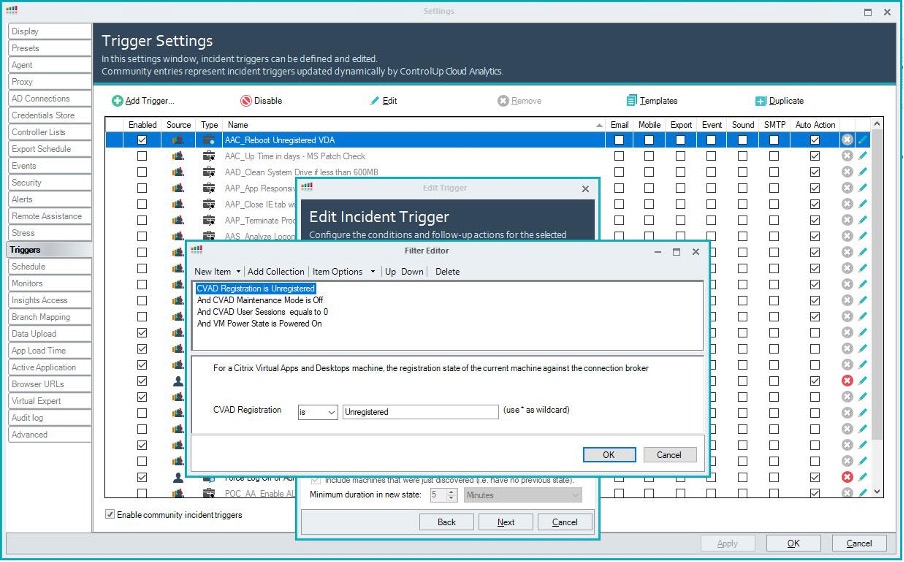

Figure 21. ControlUp Trigger example


We also have a Community Trigger that can be used to find unregistered desktops and restart them if they have been in that state for at least five minutes. If the issue that caused the desktops to unregister or fail to register on restart was a point-in-time environmental problem, a service restart or reboot can probably resolve the problem. Since the triggers ensure there are zero user sessions on the machines at the time, this won’t disrupt your users.


General: Slow Logons!

Finally, we have the classic slow logons. There are so many different variables to account for when it comes to a slow logon. Luckily, we have you covered! ControlUp examines more than 40 different phases and factors of logon duration, including the execution of some third-party products common in the Enterprise, like those from Ivanti and VMware (to name just a couple).


Obviously using the Analyze Logon Duration script action will return great data and allow you to pinpoint the origin of problems. But it also allows you to proactively pursue slow logons in your organization without constantly running checking reports and the Console metrics.


ServiceNow Analyze Logon Duration
Figure 23. Report slow logon to ServiceNow ITSM Script Action


To do this, we have another great script action (have we mentioned that the ControlUp Script Library has 363 [and counting!] community-driven script actions?) If you use ServiceNow, you can use our Report slow logon to ServiceNow ITSM script to report logons that exceed your expected average for further investigation, such as breaking down the phases of logon with the Analyze Long Duration script. Don’t let slow logons frustrate your employees, get on top of them (the slow logons, not your employees; that would be an HR violation) with our awesome scripts!.

These are the Top 10 Citrix Errors experienced by ControlUp customers. We hope this breakdown helps lead you to fixes to all of them, and also illustrates how you can use ControlUp to pick up on these errors as they happen, fix them quickly, and, in many cases, have them fixed automatically.
